Capital expenditure is always a key consideration during the system procurement process but when low cost components result in an increase in unbudgeted operational costs, then any savings quickly diminish.

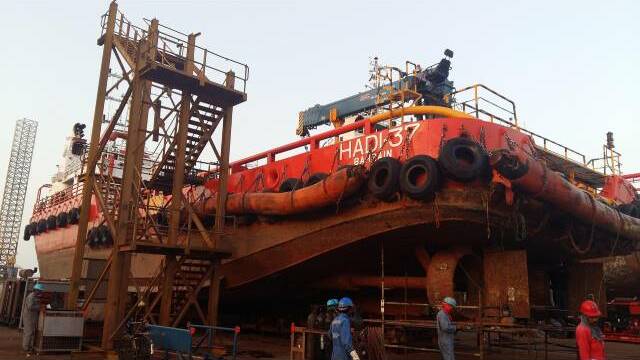

That was the experience of Saudi Arabia-based ship operator Hadi Hamad Al-Hammam when the original shaft seals fitted to Hadi 37, a 2013-built twin-screw offshore tug supply vessel (OTSV), began to leak and vibrate, resulting in regular visits to drydock for costly repairs.

“Reducing the maintenance spend associated with the original seal installation was the driving factor behind the decision to retrofit Thordon Bearings’ TG100 seals,” said Rafid Qureshi, Managing Director, Ocean Power International LLC, the Dubai-based engineering and technical services company.

“The vessel’s existing arrangement did not perform as expected and for a vessel under charter to Saudi Arabian oil major Aramco, finding a system capable of reducing off-hire time was crucial. The company approached us to source a more cost-effective solution,” explained Qureshi.

“Hadi Hamad preferred the maintenance-free seal over other known brands. The costs of pulling a shaft and replacing a seal every 2.5 – 3 years, can go upwards of US$35,000 – $50,000 over the life of a vessel, which is well above the acquisition cost of a maintenance free alternative,” said Qureshi.

“The owner already had experience with Thordon products aboard the 200m long OTSV – water lubricated XL propeller shaft and SXL rudder bearings fitted in 2013 as newbuild installations – so retrofitting the TG100 was an easy decision to make. We installed and commissioned a pair of 165mm (6.5in) diameter seals at the Dubai Maritime City (DMC) drydock, in 2016.”

George Morrison, Thordon Bearings’ Regional Manager, said: “Competitor manufacturers often offer of a low capital product, hoping to recuperate costs with aftersales in a repair and maintenance market where replacement parts and components can be expensive. We tend not to focus on this market – an approach that reflects in the reliability and quality of our products.”

During Hadi 37’s most recent classification survey, Hadi Hamad Al-Hammam, which operates a fleet of over 40 vessels, found the seals to be in “excellent working order”.

Khalid Zahran, Engineering Manager for Hadi Hamad, said: “We recently inspected the seals in drydock and they were in perfect condition. We are highly satisfied with their performance.”

Since the installation, Ocean Power International says it has witnessed increased interest for Thordon’s bearings and seals for installation to newbuild projects.

“They say bad news spreads like wildfire, but so too does good news,” said Qureshi. “By word of mouth, there is a lot of interest in the region for Thordon products.”

The TG100 is a mechanical seal specially developed for 86mm (3.375in) to 305mm (12in) water lubricated propeller shafts typical of workboats, dredgers, tugs, yachts, patrol crafts and other coastal vessels operating in either clean or dirty, abrasive waters.

The primary seal uses hard wearing, silicon carbide faces and Thordon’s proprietary elastomeric bellows to provide an unlimited shelf life compared to rubber-based bellows, which need periodic replacement. It also features a unique secondary seal with “Return to Port” capability. In the unlikely event that the primary sealing surface is damaged, this emergency function allows the shaft to turn at reduced speed enabling the ship’s safe return to port for repairs.

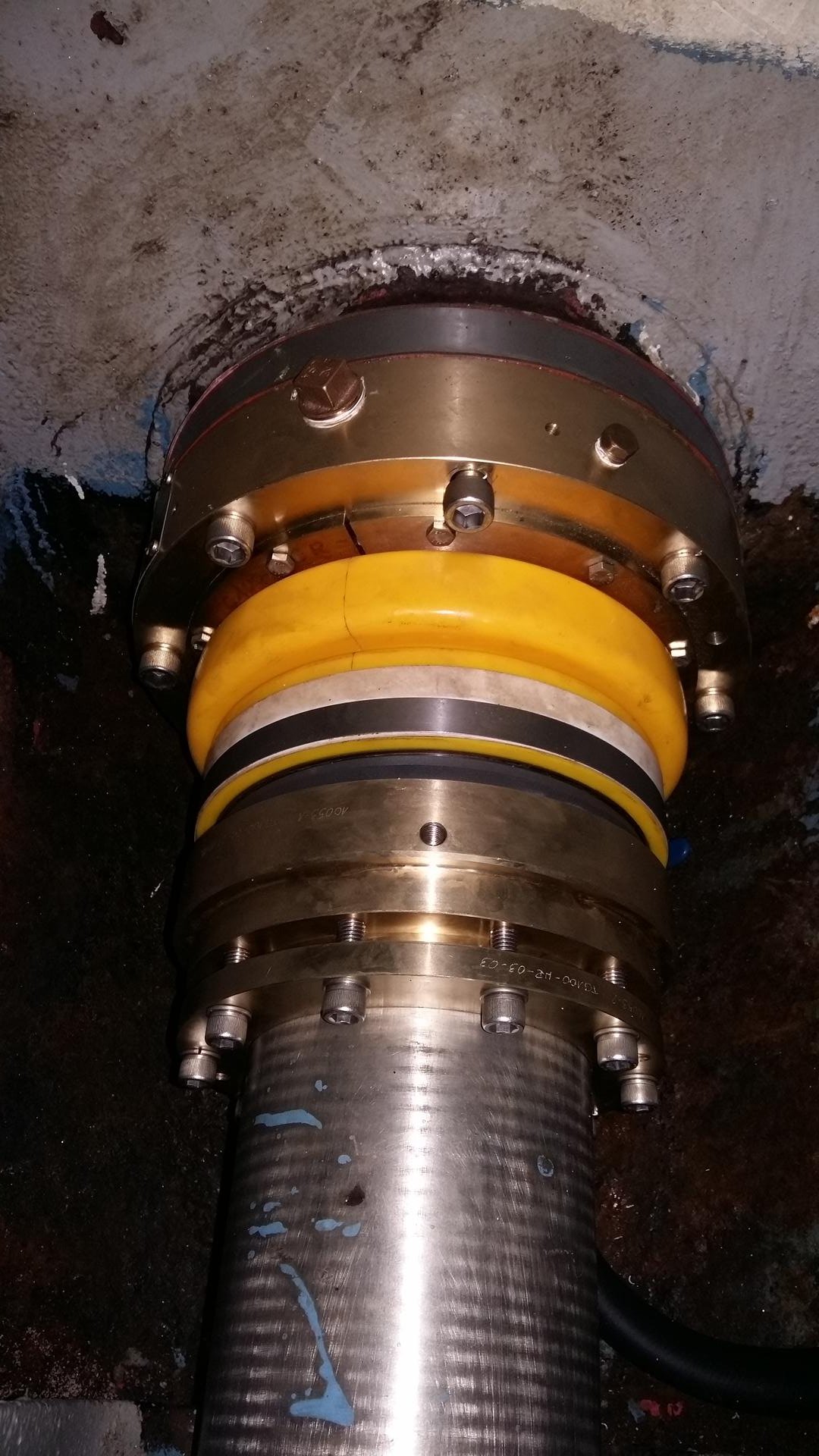

TG100 seal originally installed in 2016

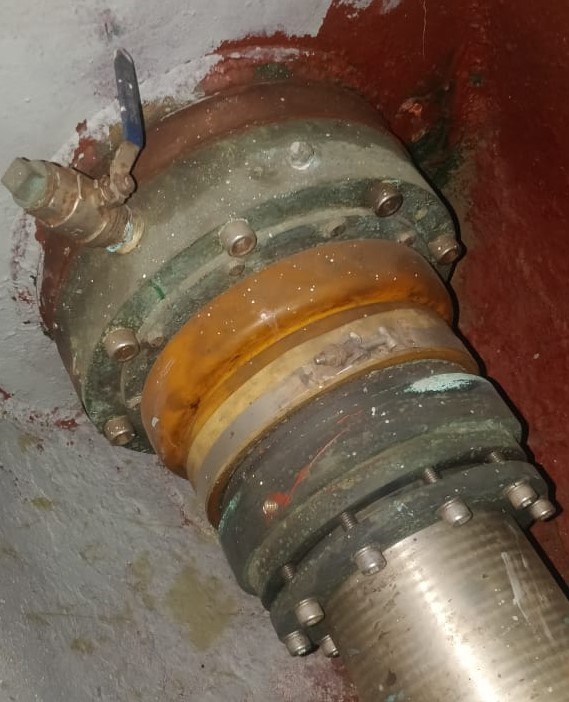

TG100 seal when inspected in 2019
